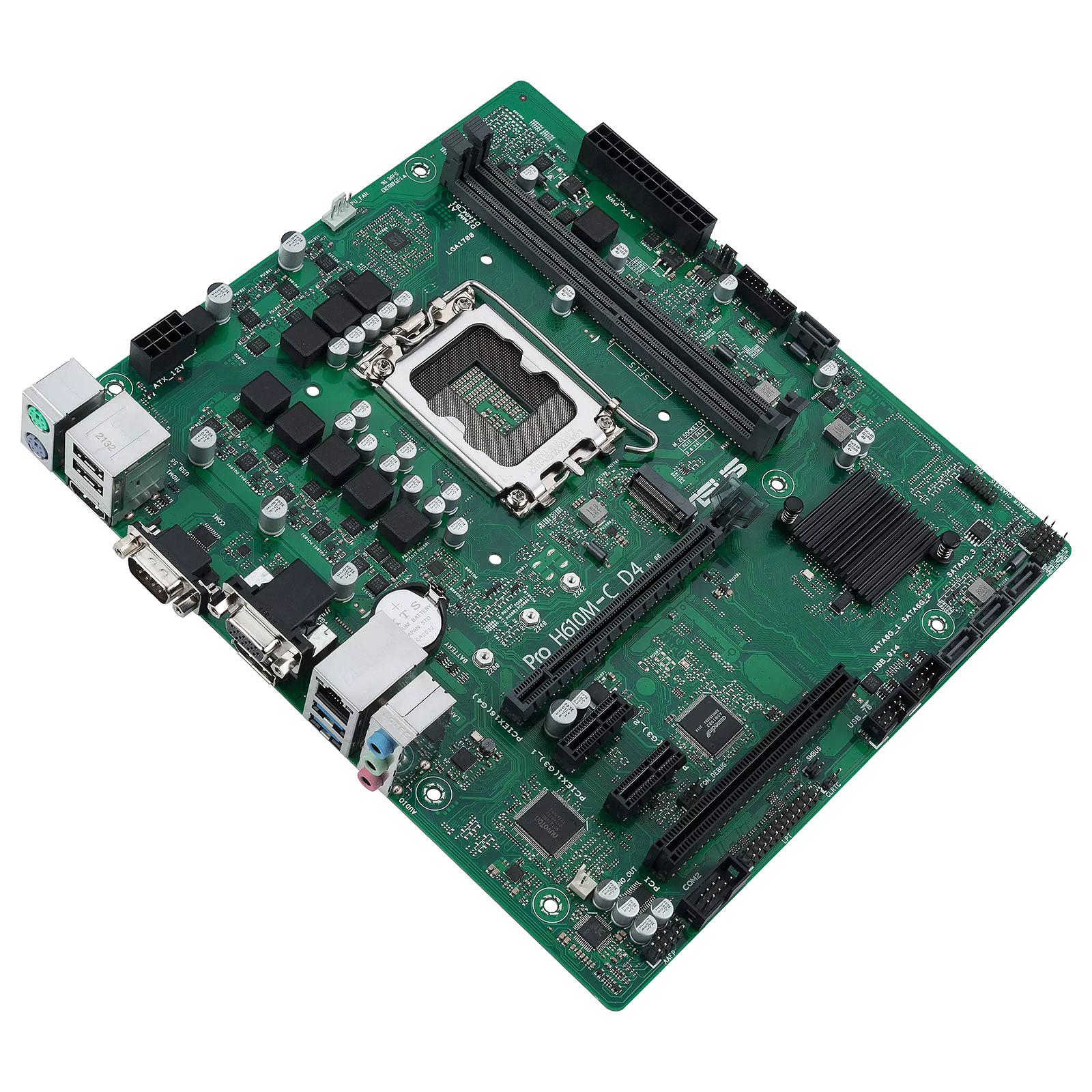

ASUS SCHEDA MADRE PRO H610M-C D4-CMS 2X DDR4 VGA/HDMI/DISPLAY-PORT SOCKET 1700

Quantità Disponibile: Esaurito

Magazzino Principale: 0

Magazzino Catania: 0

Quantità in Arrivo: 0

Sku: 15698

Recensisci per primo questo prodotto

Accedi per visualizzare il prezzo

Categorie :MOTHERBOARD INTEL, SOCKET 1700

Descrizione

Scheda madre Micro-ATX H610 business con maggiore sicurezza, affidabilità, gestibilità e manutenibilità

Socket Intel® LGA 1700: Pronto per i processori Intel Core™ di 12a generazione

Programma ASUS CSM: Una fornitura stabile di schede madri, notifiche di fine vita e software IT per schede madri aziendali

ASUS Control Center Express: Software di monitoraggio e gestione IT integrato che semplifica l'amministrazione del sistema a livello aziendale

Maggiore sicurezza del sistema: Un BIOS auto-ripristinante per salvaguardare i PC

Prestazioni costanti e affidabili: Componenti di alta qualità e test rigorosi per aiutare a garantire la durata in ambienti difficili

Gestione e personalizzazione efficienti: Un registro eventi e un kit BIOS commerciale per consentire una facile manutenzione

Migliore assistenza: Display diagnostico Q-LED e intestazione COM debug per facilitare i processi di costruzione e supporto

CPU:

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset:

Intel® H610 Chipset

Memory:

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics:

1 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Expansion Slots:

Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 2 x PCIe 3.0 x1 slots 1 x PCI slot

Storage:

Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports

Ethernet:

1 x Intel® 1Gb Ethernet ASUS LANGuard

USB:

Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports:

2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI® port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port

Internal I/O Connectors:

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header( with Apm IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

Special Features:

ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection

Software Features:

Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PME, PXE

Accessories:

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide

Operating System:

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor:

mATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22 cm )
