ASUS SCHEDA MADRE ROG STRIX B550-F GAMING 4X DDR4 HDMI/DISPLAY-PORT SOCKET AM4

Quantità Disponibile: Esaurito

Magazzino Principale: 0

Magazzino Catania: 0

Quantità in Arrivo: 0

Sku: 15729

Recensisci per primo questo prodotto

Accedi per visualizzare il prezzo

Categorie :MOTHERBOARD AMD, SOCKET AM4

Descrizione

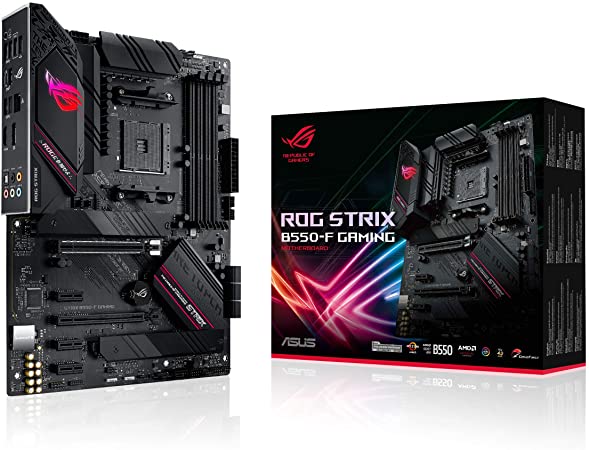

ROG STRIX B550-F GAMING

Scheda madre gaming AMD B550 ATX con PCIe® 4.0, stadi di alimentazione in team, Ethernet Intel® 2.5Gb, doppio M.2 con dissipatori di calore, SATA 6 Gbps, USB 3.2 Gen 2 e illuminazione RGB Aura Sync

Socket AM4: Pronto per i processori AMD Ryzen™ di terza generazione

La migliore connettività per il gaming: Pronto per PCIe®0-ready, doppio M.2, USB 3.2 Gen 2 Type-C® più HDMI™ 2.1 e supporto di uscita DisplayPort 1.2

Collegamento in rete senza intoppi: Ethernet Intel® 2.5Gb con ASUS LANGuard

Potente soluzione di alimentazione: Stadi di potenza accoppiati con connettore di alimentazione ProCool, bobine d'arresto in lega di alta qualità e condensatori durevoli

Software rinomato: i dashboard intuitivi per il BIOS UEFI e ASUS AI Networking rendono semplice la configurazione delle build di gioco

Design DIY: Include schermo I/O premontato, BIOS FlashBack™, Q-LED e SafeSlot

Una personalizzazione senza pari: Illuminazione RGB ASUS-esclusiva Aura Sync, incluse le intestazioni Aura RGB e l'intestazione RGB indirizzabile Gen 2

Audio gaming leader del settore: Cancellazione del rumore AI, codec SupremeFX S1220A, DTS® Sound Unbound™ e Sonic Studio III per un audio coinvolgente

CPU:

AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

Chipset:

AMD B550

Memory:

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory OptiMem II 3rd Gen AMD Ryzen™ Processors Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.

Graphic:

1 x DisplayPort 1.2 1 x HDMI 2.0 * *Graphics specifications may vary between CPU types. Integrated Graphics Processor

Multi-GPU Support:

Supports AMD 2-Way CrossFireX Technology

Expansion Slots:

MD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * 3 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x16 mode)

Storage:

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 6 x SATA 6Gb/s port(s) 3rd Gen AMD Ryzen™ Processors : Support Raid 0, 1, 10

LAN:

Intel® I225-V 2.5Gb Ethernet ASUS LANGuard

Audio:

- Audio Shielding - Premium Japanese audio capacitors - Audio Cover - Optical S/PDIF in port(s) at back panel ROG SupremeFX8-Channel High Definition Audio CODEC S1220A - SupremeFX Shielding™ Technology - Supports up to 32-Bit/192kHz playback * - Gold-plated jacks * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input Audio Feature :

USB Ports:

Rear USB Port ( Total 8 ) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) 4 x USB 2.0 port(s)

ASUS Special Features:

Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot

Back I/O Ports:

1 x BIOS FlashBack™ Button(s) 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 1 x Intel® I225-V 2.5Gb Ethernet 4 x USB 3.2 Gen 1 2 x USB 2.0 5 x Gold-plated audio jacks ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) 1 x DisplayPort 1 x HDMI 1 x Optical S/PDIF out

Internal I/O Ports:

1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x Thunderbolt header(s) 6 x SATA 6Gb/s connector(s) 1 x AAFP connector 1 x Thermal sensor connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s)

Accessories:

1 x M.2 SSD screw package(s) 1 x M.2 Rubber Package(s) 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension cable for Addressable LED 1 x ROG Thank you card User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Form Factor:

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX Form Factor

Sistema Operativo:

Windows® 10 64-bit
