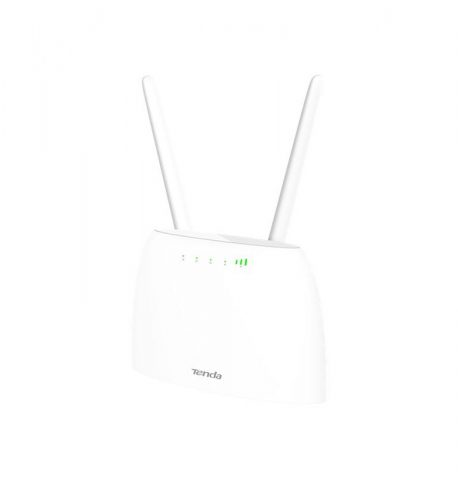

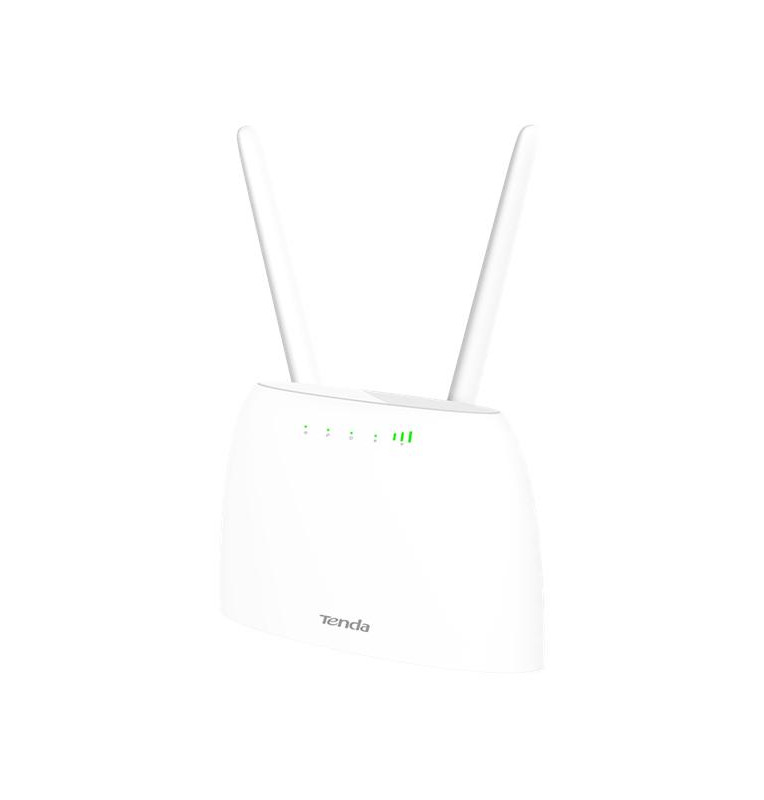

TENDA ROUTER WIRLESS 4G LTE N300 4G06

Router 4G06 / 3G / 4G / N300 Wi-Fi 4G VoLTE

Tenda 4G06 è un gateway wireless che integra LTE e accesso uplink Ethernet ad alta velocità, che fornisce agli utenti un accesso ai dati flessibile e diversificato e servizi vocali.

4G Cartgory:

LTE CAT4

4G/3G standards:

FDD LTE,TDD-LTE,WCDMA

4G Mobile Bands:

4G FDD LTE:B1/B2/B3/B4/B5/B7/B8/B20/B28AB 4G TDD-LTE:Band38/Band40 3G WCDMA:B1/B2/B5/B8 2G GSM:B3/B8

Max 4G speed:

DL:150Mbps UL:50Mbps

Wi-Fi standards:

802.11b/g/n

Wi-Fi frequency:

2.4GHz

Wi-Fi speed:

2.4GHz:300Mbps

Wi-Fi transmit Power:

2.4GHz:up to 20dBm

Interface:

1 × 10/100 Mbps LAN/WAN Port 1 × 10/100Mbps LAN Port 1*Tel Port 1 × 2FF SIM Card Slot

Button:

Power on/off WPS/Reset

Antenna:

2 detachable 4G/3G/2G Antennas 2 Internal Wi-Fi Antennas

LED indicator:

Power Wi-Fi LAN Internet 4G/3G/2G Signal strength(3 Bars)

Dimension:

185*126*60mm(L*W*H)

Weight:

About 350g

Power Supply:

Power adapter:Input power AC 100V-240V 50/60Hz Output power:DC 12V==1A

WAN Type:

4G/3G/2G or Wired

4G/3G Features:

Auto-APN Auto dial-up Roaming SMS(Send/Receive/Delete) VoLTE/CSFB USSD Data limted PIN Management

Wi-Fi functions:

Broadcast and Hide Wi-Fi name Guest network Wi-Fi schedule

Wi-Fi security:

WEP,WPA-PSK, WPA2-PSK, WPA/WPA2

Software features:

APP/Local/remote management Parental control DHCP(DHCP Server and Client) Virtual Server(UPnP/DMZ/Port Forwarding) DDNS(DynDns, 88ip) VPN(PPTP Client/L2TP Client/PPTP Server) Firewall QOS Upgrade firmware from local or OTA IPV4/IPV6 TR069

Certification:

FCC Granted CE Granted ROHS Granted

Temperature:

Operating Temperature: 0?~40? Storage Temperature: -30ºC~70ºC

Humidity:

Operating Humidity: 10% ~ 90% RH Non-condensing Storage Humidity: 5% ~ 90% RH Non-condensing

Package Content:

1 * 4G LTE Router 2 * Detachable antennas 1 * Ethernet cable 1* RJ11 Tel cable 1 * Power adapter 1 * Quick Installation Guide
