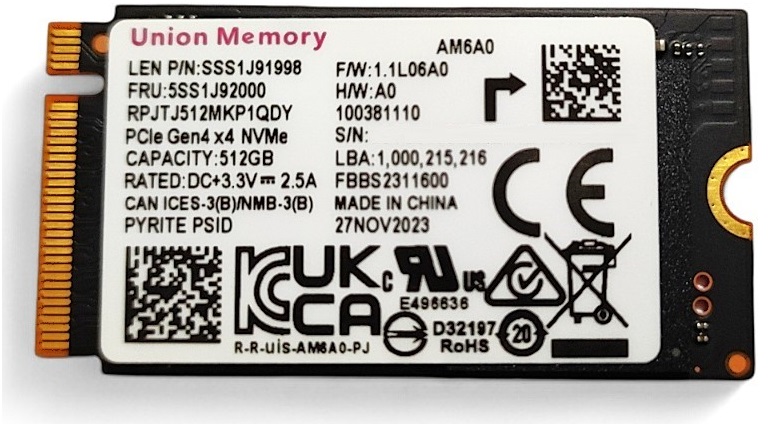

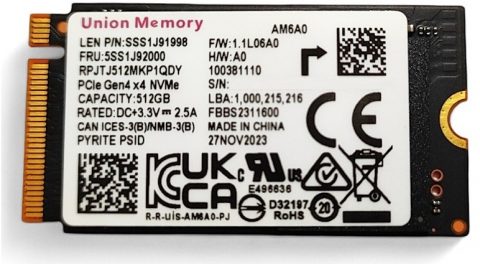

UNION MEMORY SSD

512 GB M.2 MINI PCIe GEN4 X4 NVMe 2242 AM6A0 RPJTJ512MKP1QDY OEM BULK

Product Series

AM6A0

Form Factor

M.2 2242-S3-M

Capacity

512 GB

Sequential Read

4000 MB/s

Sequential Write

3500 MB/s

Random Read IOPS(4 KB)

430K

Random Write IOPS(4 KB)

430K

TLC Sequential Write

1000 MB/s

TLC Random Write IOPS(4 KB)

43K

Size

Length 42±0.15 mm  Width 22±0.15 mm  Height Max 2.38 mm

Weight

Max 3.5 g

Power Specification

L1.2: <5 mW

Idle: <50 mW

Active: <150 mW

Host Interface

PCIe interface Gen 4*4

Support NVMe 1.4 command Set

Temperature

Operating: 0? to 70?

Non-Operating: -40? to 85?

Note: Measured by SMART Temperature and proper airflow recommended.

Humidity

5% to 95%, non-condensing

MTBF

2 million hours

Shock

1,500G,  duration 0.5ms, Half Sine Wave

Vibration

20G Peak, 10 to 2,000Hz, (15mins/Axis) *3Axi

Allowable voltage

3.3V±5%

Allowable noise / ripple

100mV p-p or less
